TDPZ0,2LT-3 B10

Manufacturer : Baumer Hübner

Country of Origin : Germany

Description :

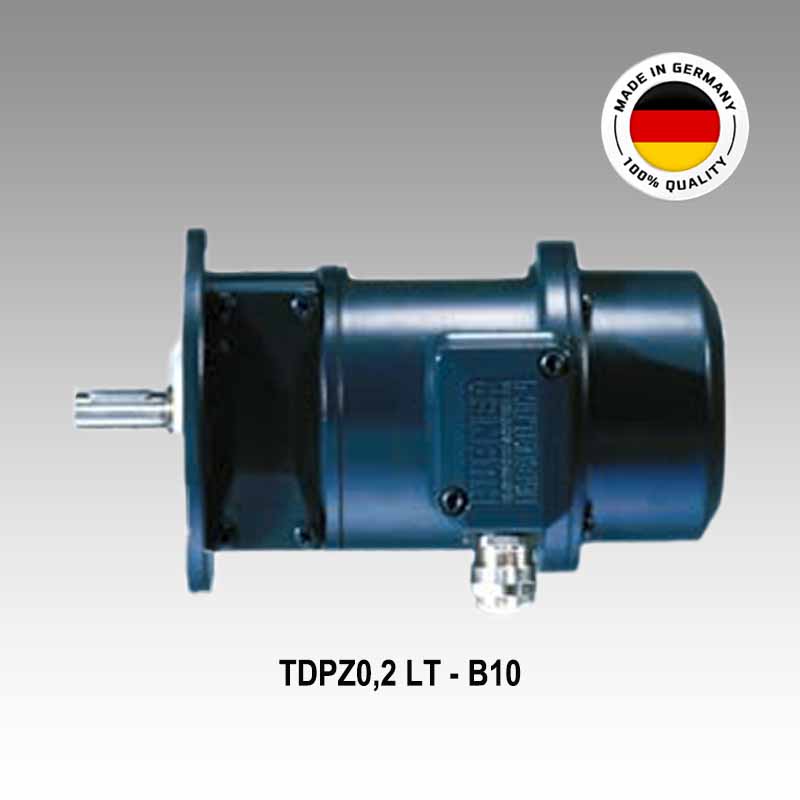

LongLife Twin (with Redundant Output) DC Tachogenerator with B10 EURO Flange mounting and Solid Shaft (11k6 x 30); with own bearings; Uo: 2 x 100Vdc/1000rpm; IP 55

Packaging Quantity : 1

Minimum Order Quantity : 1

Order In Multiples of Quantity : 1

Required Quantity :

Qty

- +

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Low response time
Open Circuit Voltage 2 X 100mV per rpm - Redundant Output

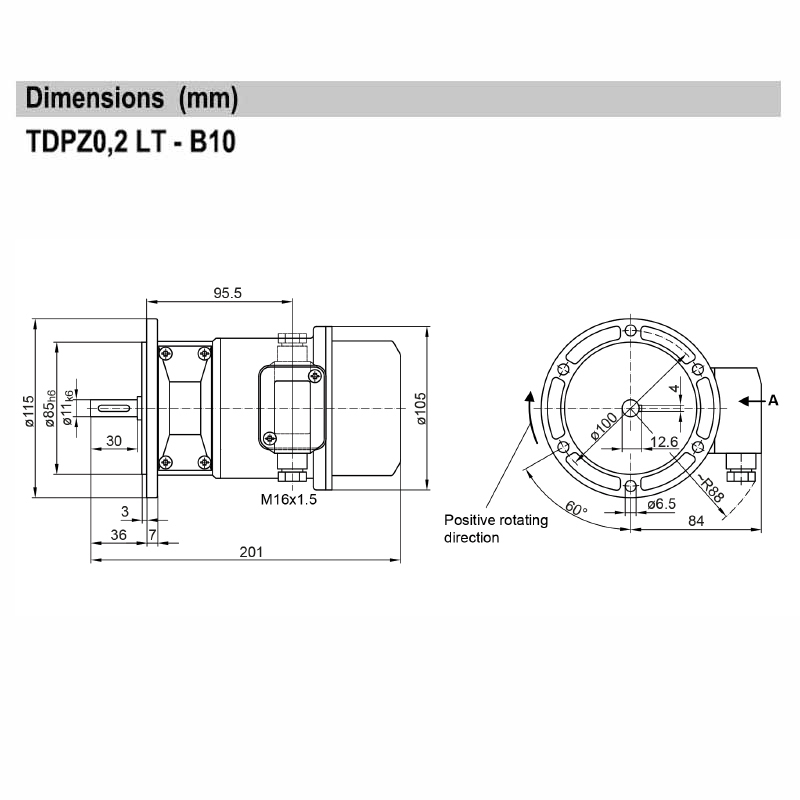

B10 Euro flange (Dia. 115mm; PCD: 100mm) mounting with Solid Shaft Diameter 11mm (Std Shaft 11k6 X 30mm)
Very high resistance to shock
High signal quality due to patented LongLife technology
Recognition of sense of rotation possible via control

Optional

Marine Air Protected - tropicalized Version
Optional Second Shaft End (B14)

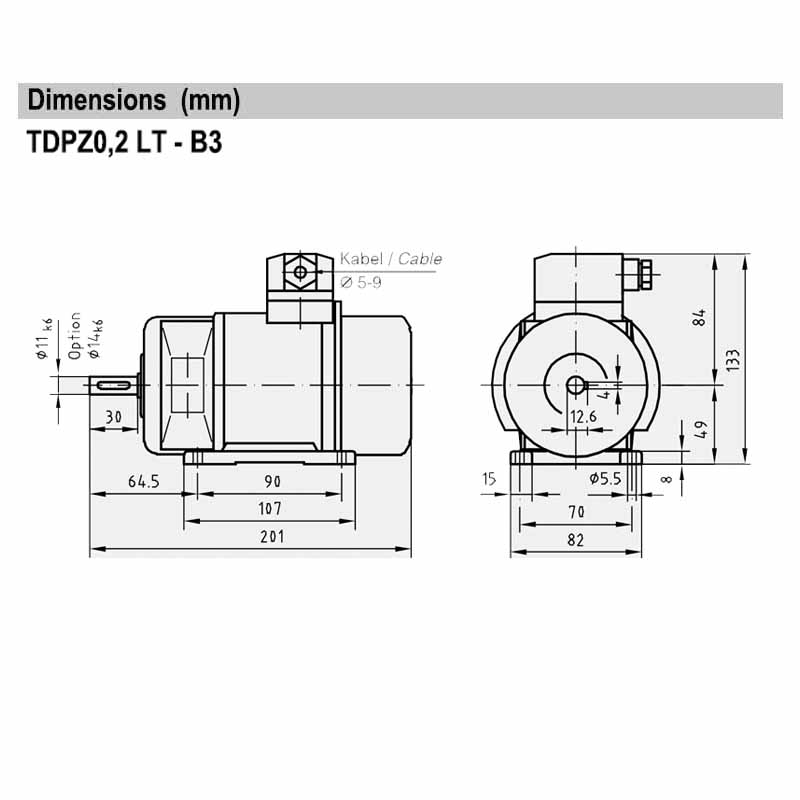

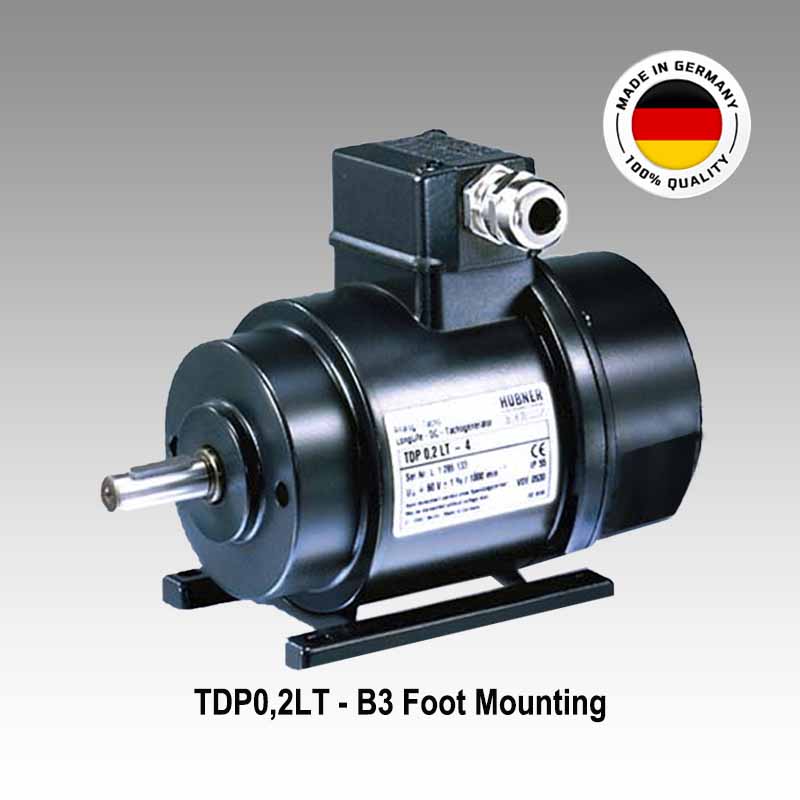

B3 Foot mounting Version

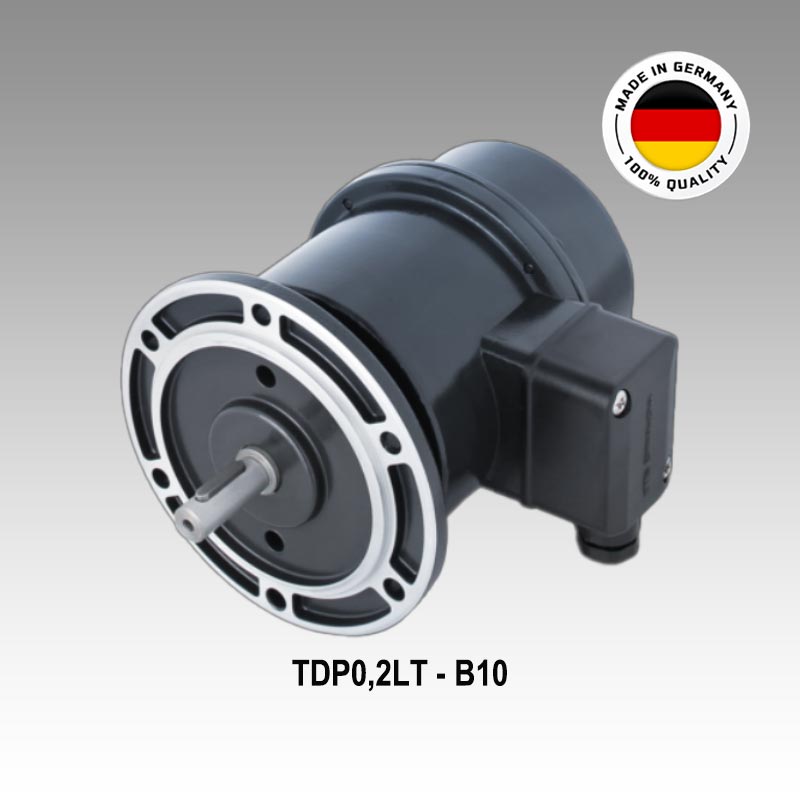

Version TDP with Single output
K35/K50/K60 - Spring Disk Isolated Couplings
Spare Original Carbon Brush replacement Set available

Technical Data

Manufacturer : Baumer Hübner

Approval : CE

OutPut Voltage : 2 x 100Vdc/1000rpm

Connection Type : Terminal Box

Series : TDPZ0,2

Weight : 2.9 KG

Shaft Type : Solid Shaft Driven

Mounting Type : B10 EURO Flange (Dia. 115mm; PCD: 100mm)

Output Signal : Twin (with Redundant Output)

Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
