Pressure Measurement Sensors

Pressure Measurement Sensors
View as List Grid

Items 1-9 of 33

per page
Page

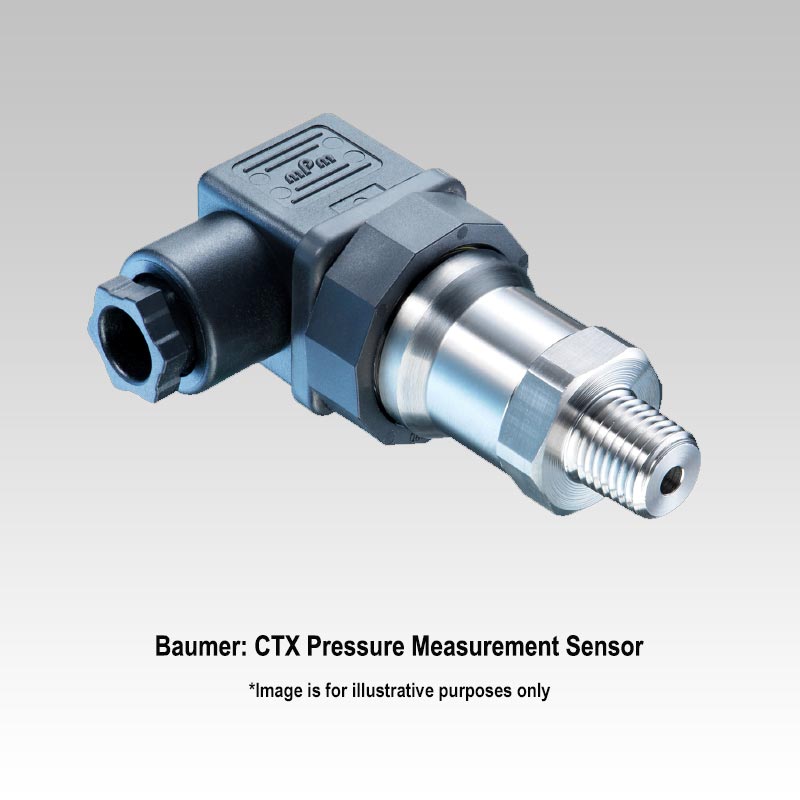

  1. CTX-2.2.3.B34.0

    CTX-2.2.3.B34.0

    Data Sheet
    Baumer
    Pressure Measurement Sensor; Housing: Stainless Steel 1.4301 AISI 304; Power Supply: 15-30 Vdc; Output Signal: 0 to 10 V; Process Connection: G 1/4 B EN 837-1 (G30); Sealing: NBR; Measuring Range: 0 to 200 Bar (EN); Output Connection: DIN EN 175301-803 A (DIN 43650 A), 4-Pin
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  2. CTX-3.2.3.B15.0

    CTX-3.2.3.B15.0

    Data Sheet
    Baumer
    Pressure Measurement Sensor; Housing: Stainless Steel 1.4301 AISI 304; Power Supply: 11-30 Vdc; Output Signal: 4 to 20 mA; Process Connection: G 1/4 B EN 837-1 (G30); Sealing: NBR; Measuring Range: 0 to 1 Bar (EN); Output Connection: DIN EN 175301-803 A (DIN 43650 A), 4-Pin
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  3. CTX-3.2.3.B18.0

    CTX-3.2.3.B18.0

    Data Sheet
    Baumer
    Pressure Measurement Sensor; Housing: Stainless Steel 1.4301 AISI 304; Power Supply: 11-30 Vdc; Output Signal: 4 to 20 mA; Process Connection: G 1/4 B EN 837-1 (G30); Sealing: NBR; Measuring Range: 0 to 2.5 Bar (EN); Output Connection: DIN EN 175301-803 A (DIN 43650 A), 4-Pin
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  4. CTX-3.2.3.B19.0

    CTX-3.2.3.B19.0

    Data Sheet
    Baumer
    Pressure Measurement Sensor; Housing: Stainless Steel 1.4301 AISI 304; Power Supply: 11-30 Vdc; Output Signal: 4 to 20 mA; Process Connection: G 1/4 B EN 837-1 (G30); Sealing: NBR; Measuring Range: 0 to 4 Bar (EN); Output Connection: DIN EN 175301-803 A (DIN 43650 A), 4-Pin
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  5. CTX-3.2.3.B1L.0

    CTX-3.2.3.B1L.0

    Data Sheet
    Baumer
    Pressure Measurement Sensor; Housing: Stainless Steel 1.4301 AISI 304; Power Supply: 11-30 Vdc; Output Signal: 4 to 20 mA; Process Connection: G 1/4 B EN 837-1 (G30); Sealing: NBR; Measuring Range: -1 to 39 Bar (EN); Output Connection: DIN EN 175301-803 A (DIN 43650 A), 4-Pin
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  6. CTX-3.2.3.B20.0

    CTX-3.2.3.B20.0

    Data Sheet
    Baumer
    Pressure Measurement Sensor; Housing: Stainless Steel 1.4301 AISI 304; Power Supply: 11-30 Vdc; Output Signal: 4 to 20 mA; Process Connection: G 1/4 B EN 837-1 (G30); Sealing: NBR; Measuring Range: 0 to 6 Bar (EN); Output Connection: DIN EN 175301-803 A (DIN 43650 A), 4-Pin
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  7. CTX-3.2.3.B22.0

    CTX-3.2.3.B22.0

    Data Sheet
    Baumer
    Pressure Measurement Sensor; Housing: Stainless Steel 1.4301 AISI 304; Power Supply: 11-30 Vdc; Output Signal: 4 to 20 mA; Process Connection: G 1/4 B EN 837-1 (G30); Sealing: NBR; Measuring Range: 0 to 10 Bar (EN); Output Connection: DIN EN 175301-803 A (DIN 43650 A), 4-Pin
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  8. CTX-3.2.3.B24.0

    CTX-3.2.3.B24.0

    Data Sheet
    Baumer
    Pressure Measurement Sensor; Housing: Stainless Steel 1.4301 AISI 304; Power Supply: 11-30 Vdc; Output Signal: 4 to 20 mA; Process Connection: G 1/4 B EN 837-1 (G30); Sealing: NBR; Measuring Range: 0 to 16 Bar (EN); Output Connection: DIN EN 175301-803 A (DIN 43650 A), 4-Pin
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  9. CTX-3.2.3.B26.0

    CTX-3.2.3.B26.0

    Data Sheet
    Baumer
    Pressure Measurement Sensor; Housing: Stainless Steel 1.4301 AISI 304; Power Supply: 11-30 Vdc; Output Signal: 4 to 20 mA; Process Connection: G 1/4 B EN 837-1 (G30); Sealing: NBR; Measuring Range: 0 to 25 Bar (EN); Output Connection: DIN EN 175301-803 A (DIN 43650 A), 4-Pin
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
View as List Grid

Items 1-9 of 33

per page
Page
Filter by
Shopping Options
Output
  1. 4 - 20 mA 31 items
  2. 0.5 - 4.5 V ratiometric 1 item
  3. 0 - 10 V 1 item
Less
Process Connection
  1. G 1/4 B EN 837-1 (G30) 24 items
  2. G 1/2 B EN 837-1 (G31) 7 items
  3. G 1/4 A DIN 3852-E (G50) 2 items
Less
Sealing
  1. NBR 31 items
  2. FKM (Viton) 2 items
Measuring Range
  1. 0 to 1 Bar (EN) 1 item
  2. 0 to 2.5 Bar (EN) 1 item
  3. 0 to 4 Bar (EN) 2 items
  4. -1 to 39 Bar (EN) 1 item
  5. 0 to 6 Bar (EN) 2 items
  6. 0 to 10 Bar (EN) 3 items
  7. 0 to 16 Bar (EN) 1 item
  8. 0 to 25 Bar (EN) 3 items
  9. 0 to 40 Bar (EN) 3 items
  10. 0 to 60 Bar (EN) 1 item
  11. 0 to 100 Bar (EN) 2 items
  12. 0 to 160 Bar (EN) 1 item
  13. 0 to 200 Bar (EN) 2 items
  14. -1 to 0 Bar (EN) 1 item
  15. -1 to 0.6 Bar (EN) 2 items
  16. -1 to 1.5 Bar (EN) 2 items
  17. -1 to 3 Bar (EN) 1 item
  18. -1 to 5 Bar (EN) 1 item
  19. -1 to 9 Bar (EN) 1 item
  20. -1 to 15 Bar (EN) 1 item
  21. -1 to 24 Bar (EN) 1 item
Less
