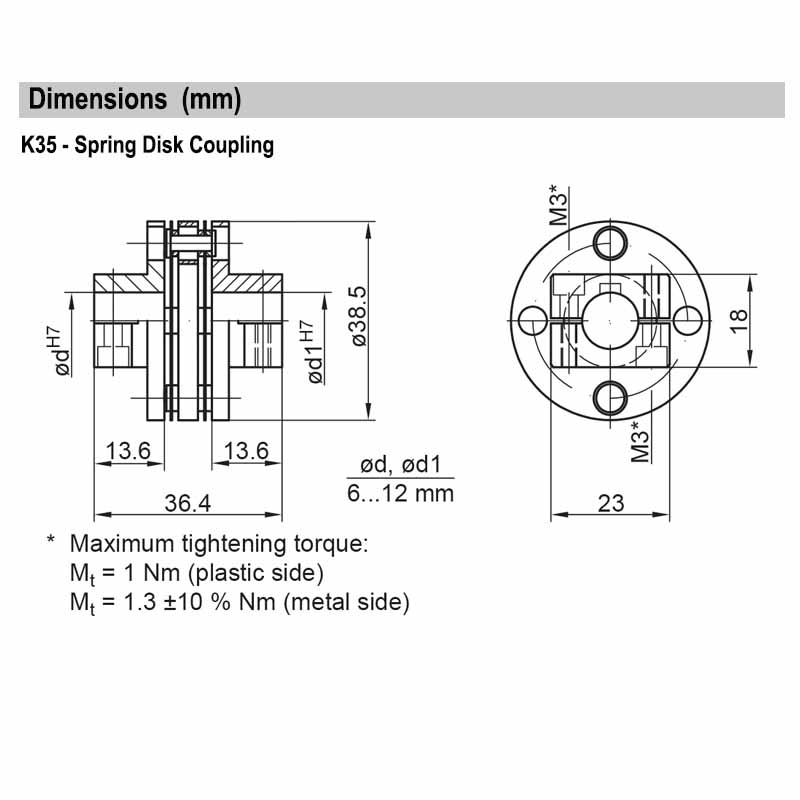

K35 Bore: d=d1=11H7

Manufacturer : Baumer Hübner
Description :
Spring Disk Coupling. Bore: d = d1 = 11 H7 (Bore Dia. 11mm with keyway on both ends)
PDF-Icon Datasheet 1
Packaging Quantity : 1
Minimum Order Quantity : 1
Order In Multiples of Quantity : 1
Required Quantity :
- +
Price on Request

Product Salient Features:

  • High quality torsionally stiff and backlash free Coupling
  • Compensating of mounting errors
  • Balanced torsional rigidity (torsional spring constant)
  • Protection against shaft currents with an insulated hub on non-drive end (Diameter 11H7)
  • Additional key possible
Technical Data
Manufacturer : Baumer Hübner
Country Of Manufacture : Germany
Type : Insulated Spring Disk Coupling
Bore Dia D : 11mm
Bore Dia D1 : 11mm
Part No : K35 Bore: d=d1=11H7
Weight : 0.05 KG
Mounting Type : Bore: d=d1=11H7
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
