EIL580-S1B1.5LN.02500.A
SKU
EIL580-S1B1.5LN.02500.A
Manufacturer :
Baumer Thalheim
Country of Origin :
Germany
Description :
Incremental Encoder with B10 EURO Flange mounting and Solid Shaft (11k6 x 30); Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 2500 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
- Body Size Dia. 58mm
- Precise optical sensing
- Output Signal Level HTL

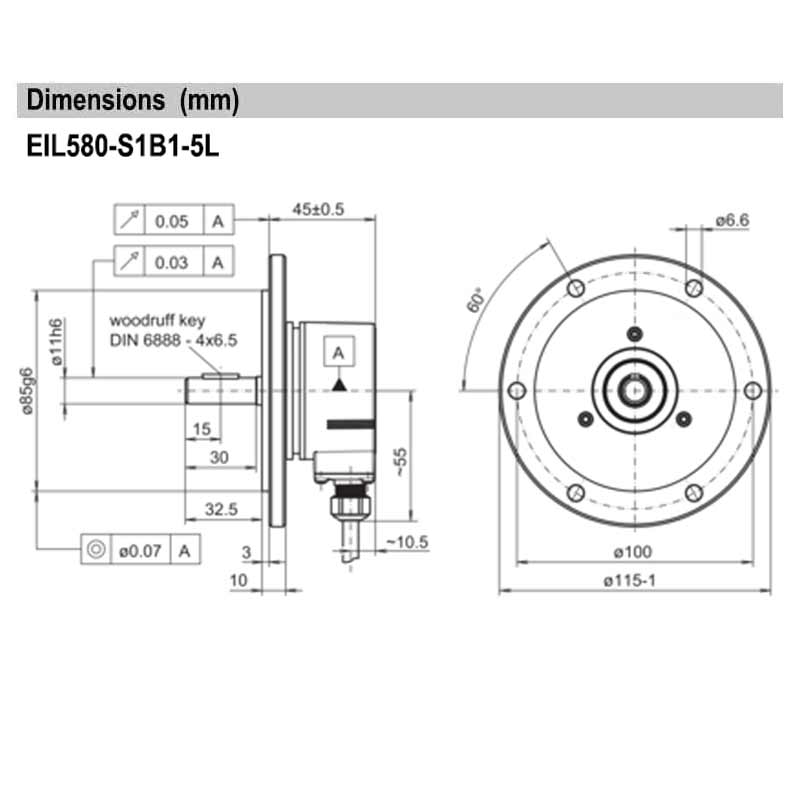

- B10 Euro Flange mounting (Flange Dia. 115mm - PCD 100mm)
- Connection Radial (Standard Version with 2-Mtrs prewired shielded Cable
- High protection IP 65 (Standard Version)
- High resistance to shock and vibrations
