HMG11P29Z0 16H7

Name: HMG11P29Z0 16H7
Brand: Baumer Hübner

Manufacturer : Baumer Hübner

Country of Origin : Germany

Description :

Blind Hollow Shaft SingleTurn/MultiTurn HeavyDuty Absolute Encoder; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Interface: Profibus-DPV0; Absolute Resolution: 13-Bit SingleTurn + 16-Bit MultiTurn; Without Incremental Output; Connection: With Bus Cover Connection; IP 67

Datasheet 1

Datasheet 2

Datasheet 3

Packaging Quantity : 1

Minimum Order Quantity : 1

Order In Multiples of Quantity : 1

Required Quantity :

Qty

- +

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

Blind Hollow Shaft HeavyDuty Absolute Encoder
Optical sensing method
13-Bit SingleTurn + 16-Bit MultiTurn
MultiTurn sensing with microGen technologie, without gear or battery
Special protection against corrosion

Optional

Additional Incremental Output TTL / HTL - 1024 / 2048 ppr
Interface: SSI; CANopen; DeviceNet; PROFINET; 2 x SSI; 2 x Profibus; 2 x CANopen®; 2 x DeviceNet
Interface: Profibus+SSI; CANopen®+SSI; DeviceNet+SSI; CANopen®+Profibus; Devicenet+Profibus; DeviceNet+CANopen®
Absolute Resolution: 13-Bit ST; 13-Bit ST + 12-Bit MT
Hollow Shaft Bore Dia.: 19H7; 20H7; 17K Conical 1:10
Available with Redundant Absolute Signals

Technical Data

Manufacturer : Baumer Hübner

Series : HMG11

Interface : Profibus-DPV0

Sensing Method : Optical

Encoder Type : Absolute ST+MT

Absolute Resolution : 13-Bit ST + 16-Bit MT

Incremental Output : Without

Supply Voltage : 9 to 30 Vdc

Mounting Type : Flange Dia.: 122mm

Shaft Type : Blind Hollow Shaft

Shaft (S)/Bore (B) Dia. : B: 16 mm

Connection Type : Bus Cover

Operating Temperature : From -20 °C to +85 °C

Protection : IP 67

Approval : CE, UL Approval / E256710

Weight : 3.5 KG

Special Notes

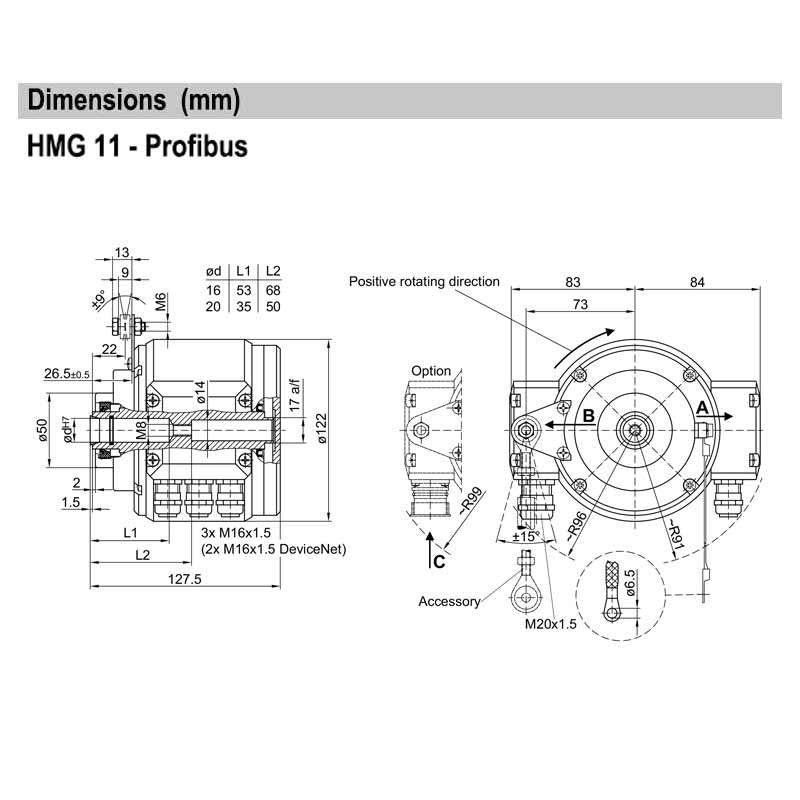

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
