EAM580-SC0.7YPT.14160.A

Manufacturer : Baumer
Country of Origin : Germany
Description :
SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: PROFINET IO; Absolute Resolution: 14-Bit ST+16-Bit MT; Without Incremental Output; Connection: Flange Connector Axial 2xM12 4-Pin Female contacts CW, 1xM12 4-Pin Male contacts CCW; IP 67
PDF-Icon Datasheet 1
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity : 1
Minimum Order Quantity : 1
Order In Multiples of Quantity : 1
Required Quantity :
- +
Price on Request

Product Salient Features:

  • SingleTurn / MultiTurn - PROFINET IO Magnetic Absolute Encoder
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • High resistance to shock and vibrations
  • High protection up to IP 67
  • LED status display

Optional

  • Protection against corrosion CX (C5-M)
  • Protection Class: IP 65
Technical Data
Manufacturer : Baumer
Series : EAM580-SC-PROFINET IO
Interface : PROFINET IO
Sensing Method : Magnetic
Encoder Type : Absolute ST+MT
Absolute Resolution : 14-Bit ST + 16-Bit MT
Incremental Output : Without
Supply Voltage : 10 to 30 Vdc
Mounting Type : Clamping Flange
Shaft Type : Solid Shaft
Shaft (S)/Bore (B) Dia. : S: 10 mm
Connection Type : Flange Connector Axial - 3xM12
Operating Temperature : From -40 °C to +85 °C
Protection : IP 67
Approval : CE
Weight : 0.25 KG
Special Notes

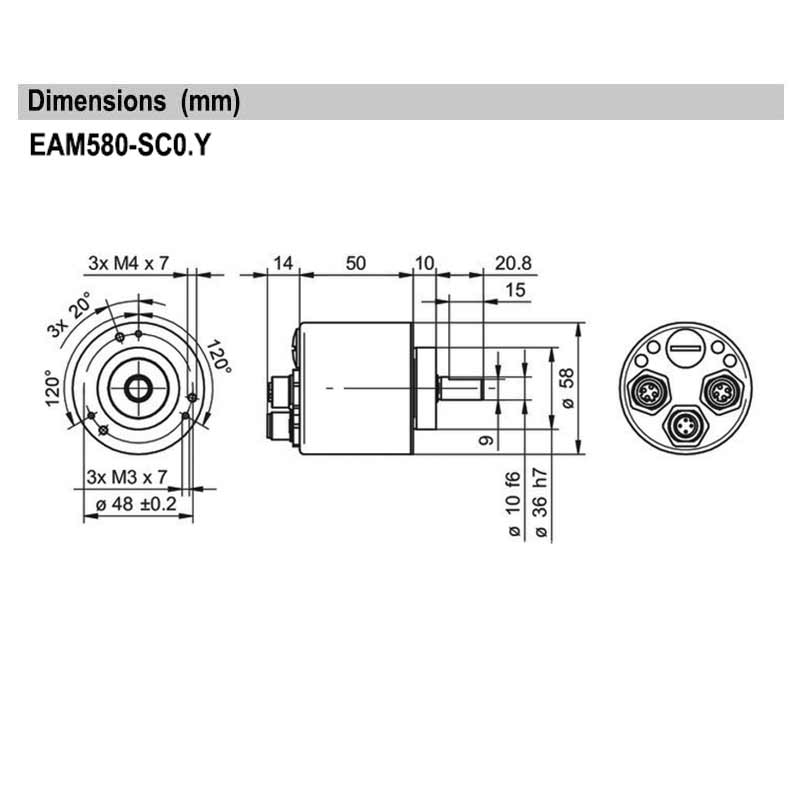

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
