BMSH58S1N24B12/00P2D

Name: BMSH58S1N24B12/00P2D
Brand: Baumer

Manufacturer : Baumer

Country of Origin : Germany

Description :

Blind Hollow Shaft SingleTurn MAGRES Magnetic Absolute Encoder; Without Stator Coupling; Bore Dia. 12mm, Clamping Ring on A-Side; Supply Voltage: 10 to 30 Vdc; Interface: CANopen®; Absolute Resolution: 12-Bit ST; Connection: Bus Cover with Cable Gland; IP 65

Datasheet 1

Datasheet 3

Packaging Quantity : 1

Minimum Order Quantity : 1

Order In Multiples of Quantity : 1

Required Quantity :

Qty

- +

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

SingleTurn MAGRES Magnetic Absolute Encoder with Bus cover
Robust Magnetic sensing method
Body Size Dia. 58mm
Blind Hollow Shaft, Bore Dia. 12mm, Clamping Ring on A-Side
Interface: CANopen®
Resolution: 12-Bit SingleTurn
High protection up to IP 65
High resistance to shock and vibrations

Optional

Interface: DeviceNet/EtherCAT/EtherNet-IP/SAEJ1939/PROFINET/POWERLINK/Profibus
Bore Dia. 15mm
Protection: IP 67

Technical Data

Manufacturer : Baumer

Series : BMSH58S1N-CANopen®

Interface : CANopen®

Sensing Method : Magnetic

Encoder Type : Absolute ST

Absolute Resolution : 12-Bit ST

Incremental Output : Without

Supply Voltage : 10 to 30 Vdc

Mounting Type : Without Stator Coupling

Shaft Type : Blind Hollow Shaft

Shaft (S)/Bore (B) Dia. : B: 12 mm

Connection Type : Bus Cover

Operating Temperature : From -40 °C to +85 °C

Protection : IP 65

Approval : UL approval / E217823

Weight : 0.48 KG

Special Notes

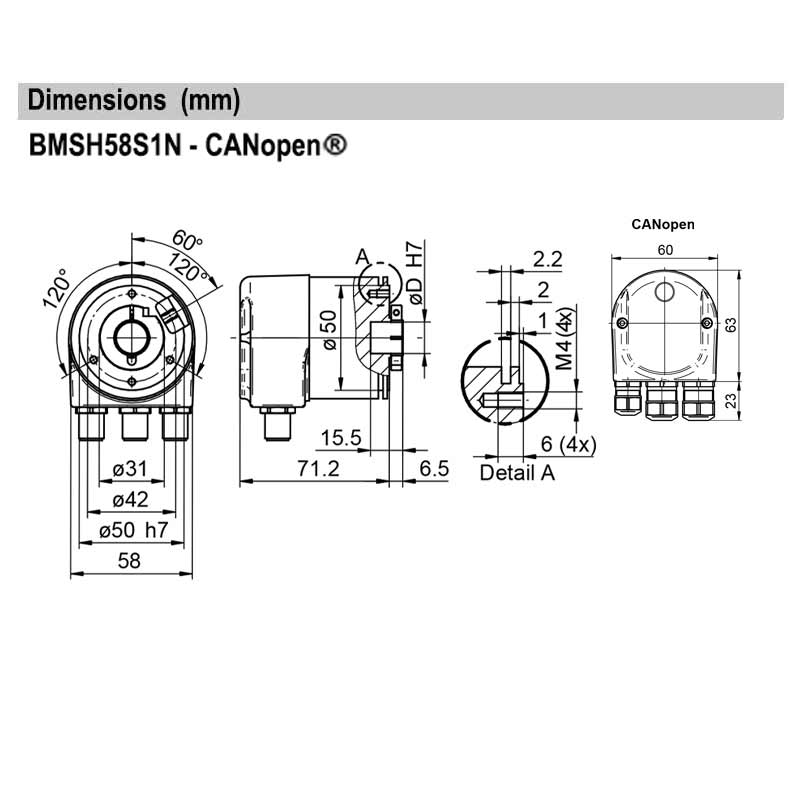

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
