Rotary Encoders Angle Sensors

Rotary encoders, pivotal in modern engineering, are angle sensors vital for precise position detection in various applications. Employing a rotating shaft, they convert angular motion into digital or analog signals, offering high-resolution feedback crucial for robotics, CNC machines, and more. These sensors come in two main types: absolute, providing a unique digital code for each position, and incremental, generating pulses corresponding to movement. With their versatility and accuracy, rotary encoders enhance automation, navigation, and control systems, ensuring optimal performance in diverse industries. Explore our range of rotary encoders to elevate your projects with precision and reliability.
View as List Grid

Items 28-36 of 240

per page
Page
  1. EAM580R-SC0.7NC4.A36A1.A

    EAM580R-SC0.7NC4.A36A1.A

    Data Sheet
    Baumer
    Analog SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 14 to 30 Vdc; Interface: 4 to 20 mA; Measuring Range: 0° to 3600°; Output: 1-Channel, rising CW; Connection: Flange Connector Radial M12 5-Pin Male Contacts, A-Coded; IP 67
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  2. EAM580R-SC0.7NV1.A3601.A

    EAM580R-SC0.7NV1.A3601.A

    Data Sheet
    Baumer
    Analog SingleTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 14 to 30 Vdc; Interface: 0 to +10 V; Measuring Range: 0° to 360°; Output: 1-Channel, rising CW; Connection: Flange Connector Radial M12 5-Pin Male Contacts, A-Coded; IP 67
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  3. EAM580R-SY6.7NC4.A36A1.A

    EAM580R-SY6.7NC4.A36A1.A

    Data Sheet
    Baumer
    Analog SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Synchro Flange mounting; Solid Shaft Dia. 6f8 x L:10mm; Supply Voltage: 14 to 30 Vdc; Interface: 4 to 20 mA; Measuring Range: 0° to 3600°; Output: 1-Channel, rising CW; Connection: Flange Connector Radial M12 5-Pin Male Contacts, A-Coded; IP 67
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1

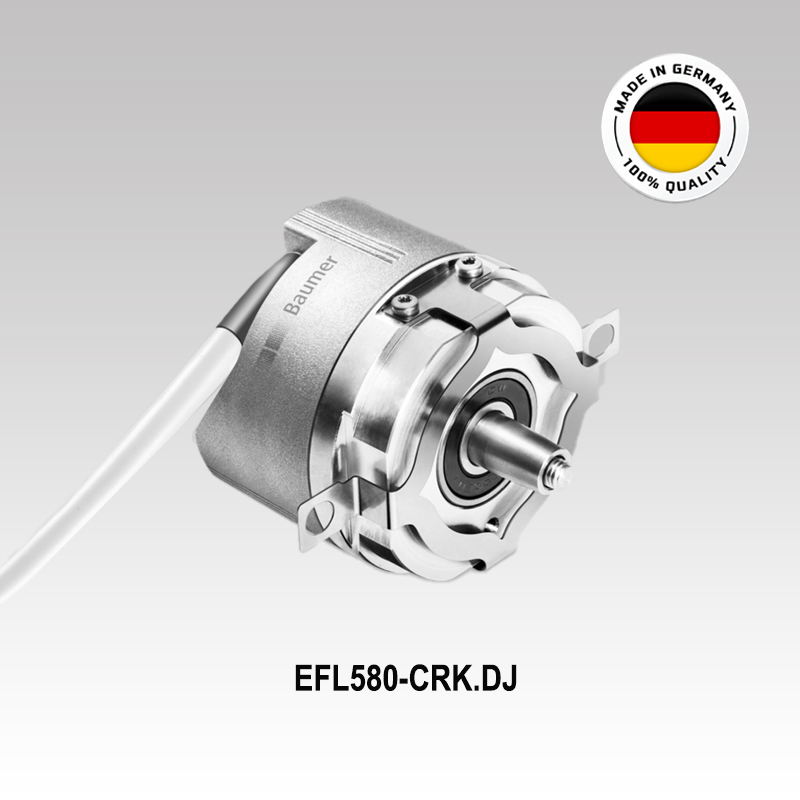

  4. EFL580-CRK.DJ6B.13009

    EFL580-CRK.DJ6B.13009

    Data Sheet
    Baumer
    Conical Solid Shaft SingleTurn Absolute Encoder; With Stator Coupling Dia. 72mm; Shaft: Dia. 9.25mm Cone Shaft, Center Screw; Supply Voltage: 5 Vdc ±10%; Interface: BiSS C, Binary; Absolute Resolution: 13-Bit ST; Without Incremental Output; Connection: Cable 5-Meters, Tangential SUB-D, 15-Pin, 2-Rows; IP 64
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  5. EHOG860-E12P10012 - 11730684

    EHOG860-E12P10012 - 11730684

    Data Sheet
    Baumer Hübner

    SMART HeavyDuty Programmable Blind Hollow Shaft Incremental Encoder HOG860-11730684; Bore Dia. 12mm (12G7x53mm); Supply Voltage: 4.75 to 30 Vdc (Vin = Vout, HTL/TTL); Output Signal (Programmable): HTL-P/TTL with Inverted Signals (6-Channels); Programmable: 1 to 32768 ppr; Connection: Terminal Box with pluggable push in terminal blocks and 1 x M20 Cable Gland; IP 66.
    To download Software: Baumer Sensor Suite - Click Here

    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  6. EHOG860-E16P10012 - 11730692

    EHOG860-E16P10012 - 11730692

    Data Sheet
    Baumer Hübner

    SMART HeavyDuty Programmable Blind Hollow Shaft Incremental Encoder HOG860-11730692; Bore Dia. 16mm (16G7x53mm); Supply Voltage: 4.75 to 30 Vdc (Vin = Vout, HTL/TTL); Output Signal (Programmable): HTL-P/TTL with Inverted Signals (6-Channels); Programmable: 1 to 32768 ppr; Connection: Terminal Box with pluggable push in terminal blocks and 1 x M20 Cable Gland; IP 66.
    To download Software: Baumer Sensor Suite - Click Here

    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  7. EHOG860-S11P10012 - 11730676

    EHOG860-S11P10012 - 11730676

    Data Sheet
    Baumer Hübner

    SMART HeavyDuty Programmable Incremental Encoder HOG860-11730676; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 4.75 to 30 Vdc (Vin = Vout, HTL/TTL); Output Signal (Programmable): HTL-P/TTL with Inverted Signals (6-Channels); Programmable: 1 to 32768 ppr; Connection: Terminal Box with pluggable push in terminal blocks and 1 x M20 Cable Gland; IP 66.
    To download Software: Baumer Sensor Suite - Click Here

    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  8. baumer-eil580-bt-5l-incremental-encoder

    EIL580-BT12.5LN.01024.A

    Data Sheet
    Baumer Thalheim
    Blind Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø12 mm, Clamping Ring on A-side; Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
  9. EIL580-BT15.5LN.01024.A - 11125258

    EIL580-BT15.5LN.01024.A - 11125258

    Data Sheet
    Baumer Thalheim
    Blind Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø15 mm, Clamping Ring on A-side; Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
    Quantity :
    Minimum Order Quantity : 1 Order In Multiples of Quantity : 1
