LBFS-13511.0

Manufacturer : Baumer

Description :

CleverLevel Point Level Measurement Sensor; SS Housing; ATEX II 1G Ex ia IIC T5 Ga Approved; Power Supply: 12-30 Vdc; Electrical Connection: M12-A, 4-Pin, Stainless Steel without LED; Process Connection: G 1A ISO 228-1 for reverse assembly (in-shell thread) (T10), SS AISI 304 (1.4301); Output: PNP; Factory configured

Packaging Quantity : 1

Minimum Order Quantity : 1

Order In Multiples of Quantity : 1

Required Quantity :

Qty

- +

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

Point level (Frequency Sweep) detection Sensor for Hygienic and Industrial applications
Wide variety of Process Connections
Optional Marine, ATEX, WHG and cULus approval
Compact and robust Stainless Steel housing
Reliable in diverse media
Process temperatures up to 200 Degree C
Economical Pricing
Ex-Stock Deliveries

Technical Data

Manufacturer : Baumer

Series : LBFS

Sensor Type : Level Measurement

Housing Material : Stainless Steel

Power Supply : 12-30 Vdc

Output : PNP

Electrical Connection : M12-A, 4-Pin, Stainless Steel without LED

Process Connection : G 1/2 A ISO 228-1 for reverse assembly (in-shell thread) (T10)

Material of Process Connection : SS AISI 304 (1.4301)

Explosion Proof Protection : ATEX II 1G Ex ia IIC T5 Ga

Configuration : Factory Settings

Gasket : Without

Protection : IP 67

Special Notes

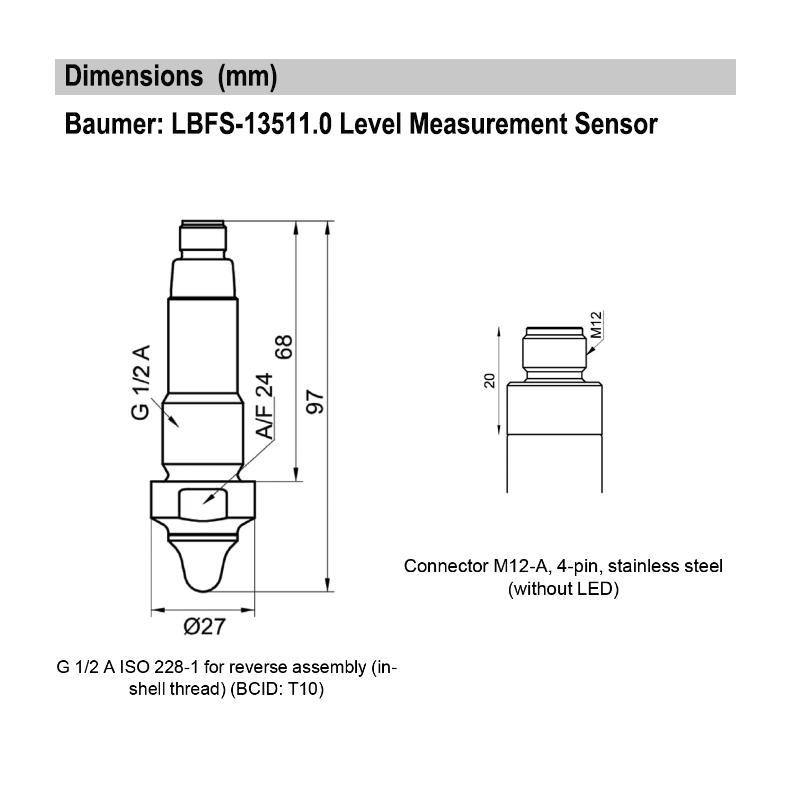

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
