LBFH-21.010.A03020.1.3003.0

LBFH-21.010.A03020.1.3003.0

Manufacturer : Baumer

Description :

CleverLevel Point Level Measurement Sensor; with Programmable Output, IO-Link; Housing: Stainless Steel AISI 316L (1.4404); Power Supply: 8-36 Vdc; Electrical Connection: M12-A, 4-Pin, Polycarbonate with LED; Process Connection: G 1/2A Hygienic(A03), SS AISI 316L (1.4404); Without Gasket; Output: PNP; Ex-Proof: IECEx/ATEX nA; Standard Approvals; Hygiene Approval: 3-A/EHEDG; Factory configured

Packaging Quantity : 1

Minimum Order Quantity : 1

Order In Multiples of Quantity : 1

Required Quantity :

Qty

- +

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

Point level (Frequency Sweep) detection Sensor for hygiene sector
Optionally with adaptive trigger
Optional ATEX and IECEx certified for dust and gas
3-A & FDA-compliant, EHEDG-certified
Problem solver for adhesions
Two adjustable switching outputs
360 Degree visible multicolor LED
IO-Link interface
Economical Pricing
Ex-Stock Deliveries

Technical Data

Manufacturer : Baumer

Series : LBFH

Sensor Type : Level Measurement

Version Type : Programmable O/p, IO-Link

Housing Material : SS AISI 316L (1.4404)

Power Supply : 8-36 Vdc

Output : PNP

Electrical Connection : M12-A, 4-Pin, Polycarbonate with LED

Process Connection : G 1/2 A Hygienic (A03)

Material of Process Connection : SS AISI 316L (1.4404)

Explosion Proof Protection : IECEx/ATEX nA

Industrial Approvals : Standard

Special Approvals : 3-A / EHEDG

Configuration : Factory Settings

Gasket : Without

Protection : IP 67

Special Notes

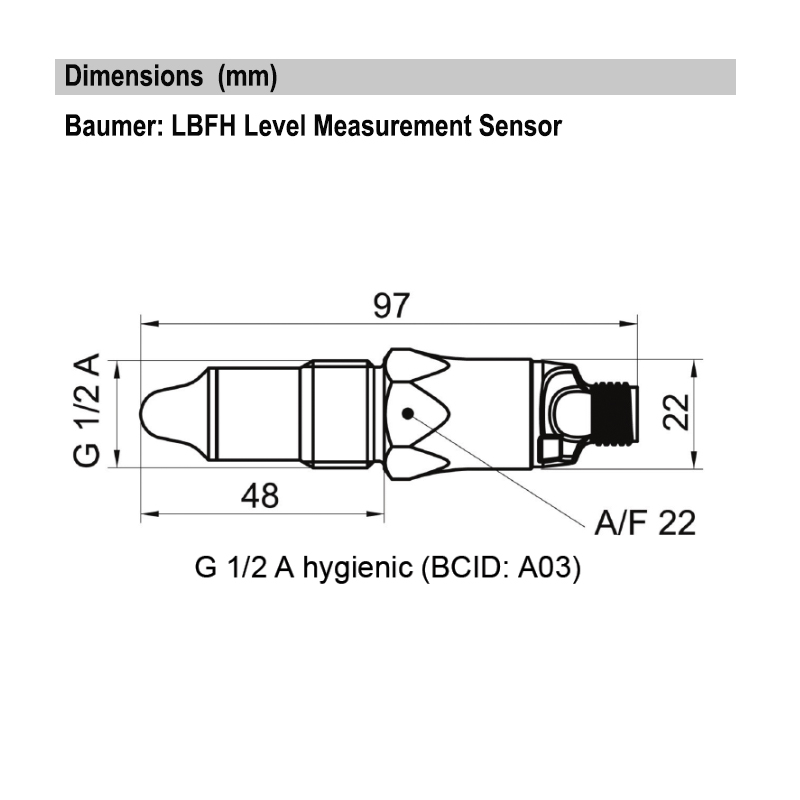

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
