POG9DN1000I

Manufacturer : Baumer Hübner
Country of Origin : Germany
Description :
HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 1000 ppr; Connection: Radial Terminal Box; IP 56
PDF-Icon Datasheet 1
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity : 1
Minimum Order Quantity : 1
Order In Multiples of Quantity : 1
Required Quantity :
- +
Price on Request

Product Salient Features:

  • Robust, compact Housing
  • Two bearings with large distance, one at each end
  • High shaft load up to 350 N
  • Shock resistant up to 300 g, 1ms
  • Highest operating speed 12000 rpm
  • Terminal Box, Cover can turn by 180

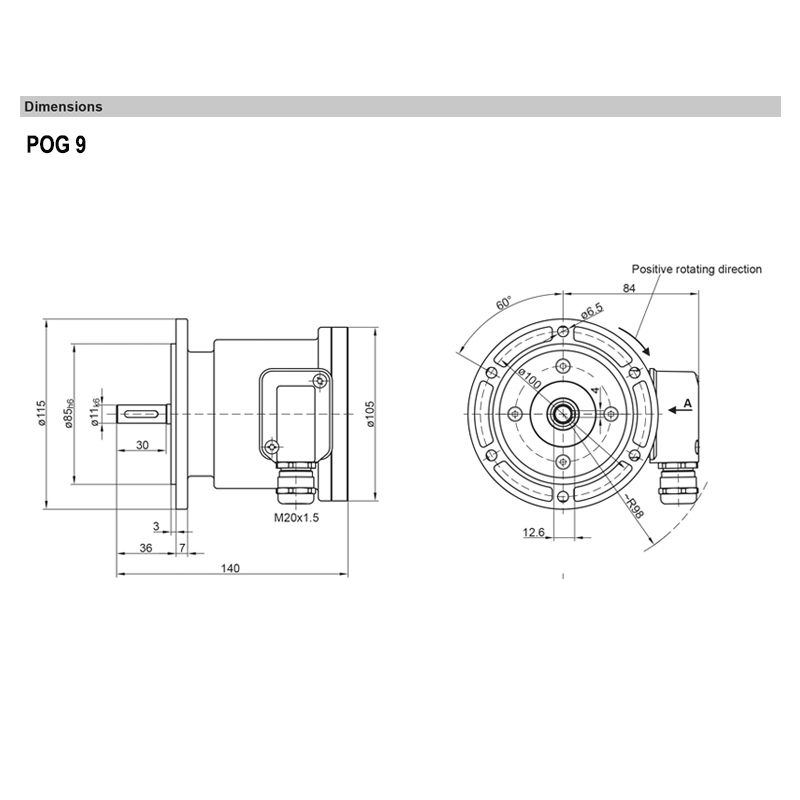

  • B10 Euro Flange mounting (Flange Dia. 115mm - PCD 100mm)
  • Operating Temperature -30 to +100 Degree Centigrade

Optional

  • Function Control with EMS (Enhanced Monitoring System)
  • Second shaft end
  • Other PPR's available: 300, 500, 512, 1000, 1024, 1200, 2048, 2500, 3072, 4096, 5000
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 11 mm
Mounting Type : B10 EURO Flange (Dia. 115mm; PCD: 100mm)
Encoder Type : Incremental
Output Signal : HTL
PPR : 1000 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : Terminal Box - Radial
Operating Temperature : From -30 °C to +100 °C
Protection : IP 56
Approval : CE, UL Approval / E217823
Weight : 1.4 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
ACCESSORIES
K60
K60
Spring Disk Coupling. (Bore Dia. 11 to 22mm with/without keyway on both ends)
Minimum: 1
Multiple: 1
K50
K50
Spring Disk Coupling. (Bore Dia. 11 to 16mm with/without keyway on both ends)
Minimum: 1
Multiple: 1
K35
K35
Spring Disk Coupling. (Bore Dia. 6 to 12mm with/without keyway on both ends)
Minimum: 1
Multiple: 1
K35 Bore: d=d1=11H7
K35 Bore: d=d1=11H7
Spring Disk Coupling. Bore: d = d1 = 11 H7 (Bore Dia. 11mm with keyway on both ends)
Minimum: 1
Multiple: 1
