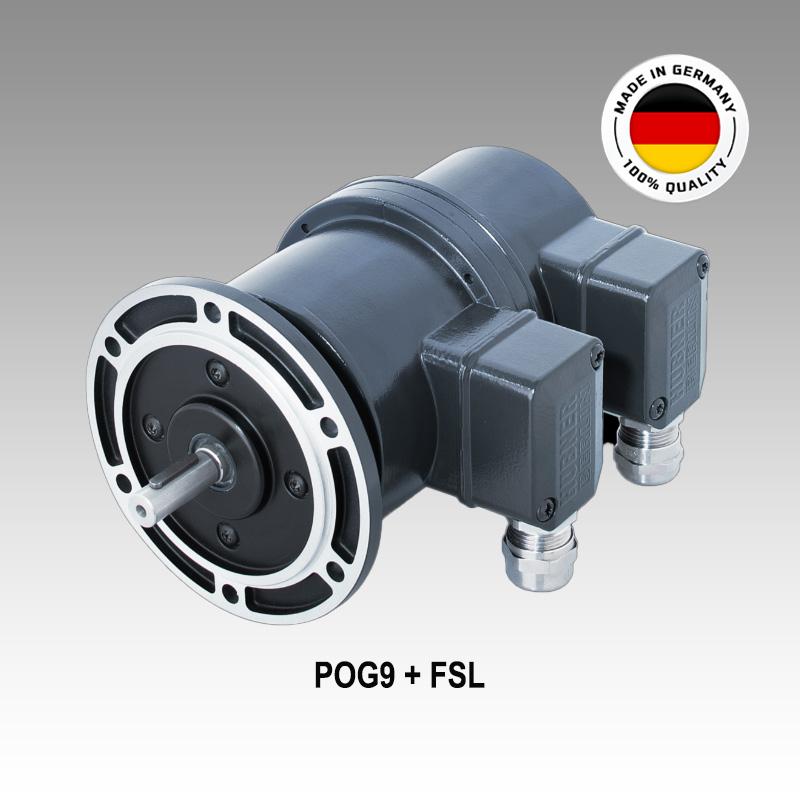

POG9D1024I + FSL (Ns: 1700 rpm)

Manufacturer : Baumer Hübner

Country of Origin : Germany

Description :

HeavyDuty Incremental Encoder with Integrated Centrifugal Switch; B10 EURO Flange mounting and Solid Shaft (11k6 x 30); Encoder Supply Voltage: 9 to 30 Vdc; Encoder Output Signals: HTL with Inverted Signals (K1, K1', K2, K2', 4-Channels without Marker Pulse); 1024 ppr; IP 56; Centrifugal Switch Switching Speed: Ns: 1700 rpm

Packaging Quantity : 1

Minimum Order Quantity : 1

Order In Multiples of Quantity : 1

Required Quantity :

Qty

- +

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

Robust Housing

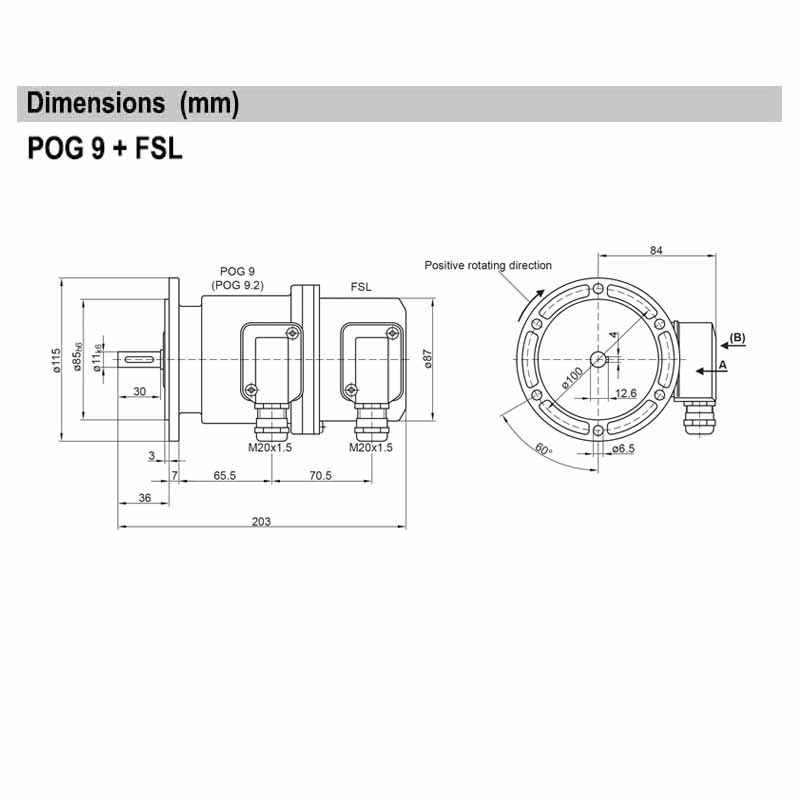

Encoder with Solid Shaft Dia. 11mm with keyway, Length 30mm (11k6 X 30mm)
B10 Euro Flange mounting (Flange Dia. 115mm - PCD 100mm)
Terminal Box, Cover can turn by 180 degree
Optical sensing method
Output stage HTL with power linedriver
Operating Temperature -30 to +100 Degree Centigrade
Mechanical speed monitoring based on centrifugal force

Technical Data

Manufacturer : Baumer Hübner

Shaft Type : Solid Shaft Driven

Mounting Type : B10 EURO Flange (Dia. 115mm; PCD: 100mm)

Output Signal : HTL

PPR : 1024 ppr

Supply Voltage : 9 to 30 Vdc

Connection Type : 2xTerminal Box

Operating Temperature : From -30 °C to +100 °C

Protection : IP 56

Approval : CE

Weight : 1.9 KG

Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
