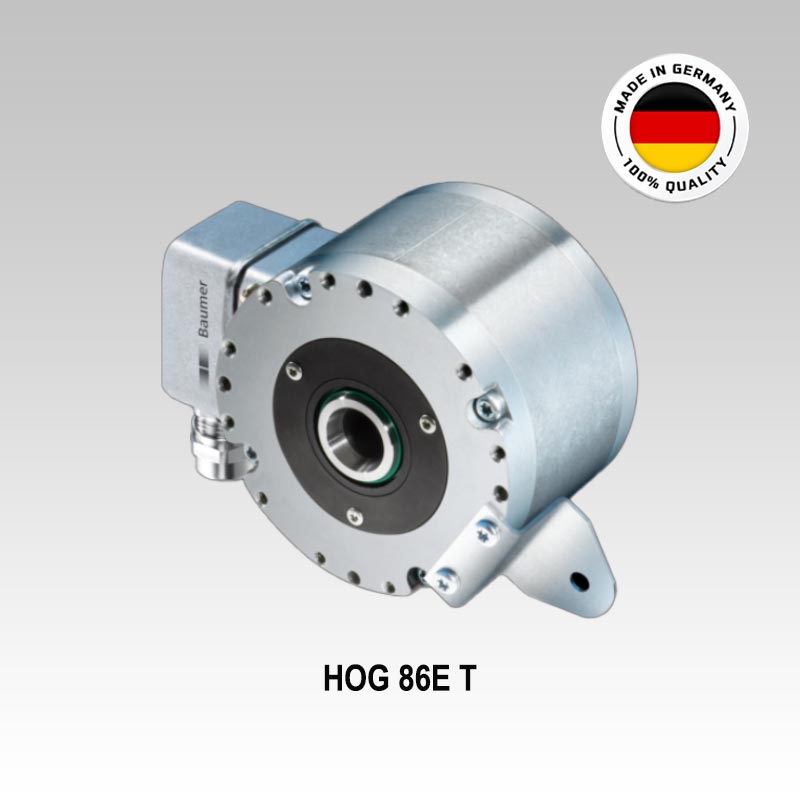

HOG86E-TP2DN2048I

Manufacturer : Baumer Hübner
Country of Origin : Germany
Description :
Blind Hollow Shaft HeavyDuty Incremental Encoder; PA Insulated Bearings; Bore Dia. 12mm (12H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 2048 ppr; Radial Terminal Box connection; Without painted body; IP 66
PDF-Icon Datasheet 1
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity : 1
Minimum Order Quantity : 1
Order In Multiples of Quantity : 1
Required Quantity :
- +
Price on Request

Product Salient Features:

  • Robust, compact housing
  • Two PA Insulated Bearings with large distance, one at each end
  • High shaft load up to 450 N
  • Shock resistant up to 250 g, 6ms
  • Shaft insulation up to 2.8 kV
  • Highest operating speed 10000 rpm
  • Terminal box cover can be turned by 180°

Optional

  • 5 VDC / output stage TTL with inverted signals
  • 9 to 30 VDC / output stage TTL with inverted signals
  • Connection: 1xM23, 12-Pin Flange Connector, Radial, cw
  • Bore Dia. 16mm - 16H7; 16mm - 16G7; 12mm - 12F6; Conical Shaft Bore 17mm (1:10)
  • Other PPR's available: 500, 512, 1000, 1024, 1250, 2048, 2500
  • Suitable for ambient conditions C4 - Corrosion Protection according to ISO 12944-2
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 12 mm
Mounting Type : Support Plate R63
Encoder Type : Incremental
Output Signal : HTL
PPR : 2048 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : Terminal Box - Radial
Operating Temperature : From -40 °C to +100 °C
Protection : IP 66
Approval : CE, UL/CSA
Weight : 1.3 KG
Special Notes

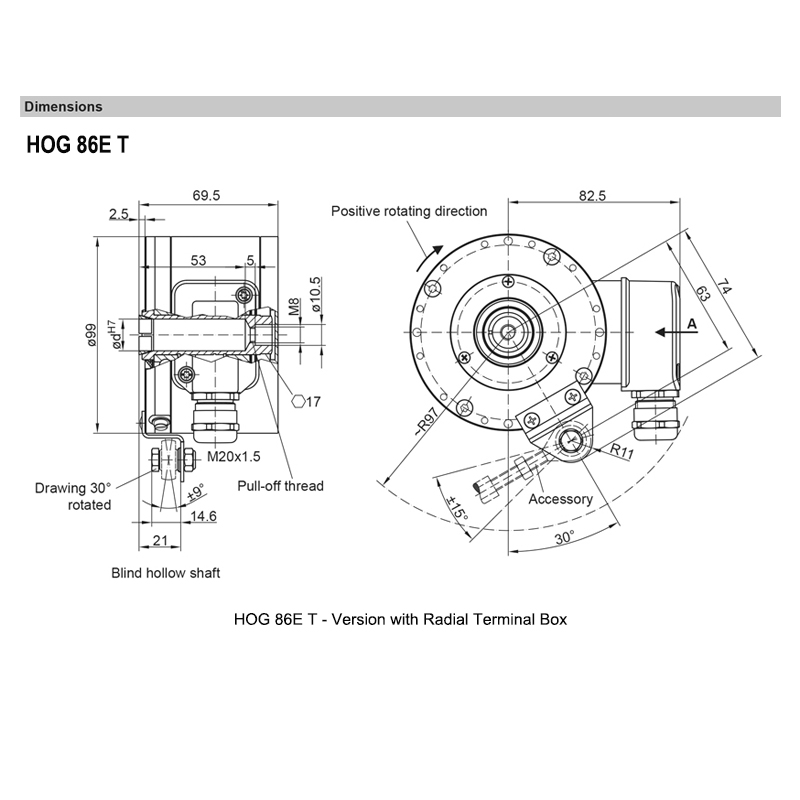

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
ACCESSORIES
ET.51.1007L-M6 Torque Arm
ET.51.1007L-M6 Torque Arm
M6 Torque Arm for Baumer Hubner HeavyDuty Hollow Shaft Incremental Encoders; L: 460mm (max.), shortenable to minimum: 135mm; with ball joints of 6mm
