EHOG860-E12P10012 - 11730684

Manufacturer : Baumer Hübner

Country of Origin : Germany

Description :

SMART HeavyDuty Programmable Blind Hollow Shaft Incremental Encoder HOG860-11730684; Bore Dia. 12mm (12G7x53mm); Supply Voltage: 4.75 to 30 Vdc (Vin = Vout, HTL/TTL); Output Signal (Programmable): HTL-P/TTL with Inverted Signals (6-Channels); Programmable: 1 to 32768 ppr; Connection: Terminal Box with pluggable push in terminal blocks and 1 x M20 Cable Gland; IP 66.
To download Software: Baumer Sensor Suite - Click Here

Packaging Quantity : 1

Minimum Order Quantity : 1

Order In Multiples of Quantity : 1

Required Quantity :

Qty

- +

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

Encoder with Blind Hollow Shaft Dia. 12mm (12G7 X 53mm)
Optical sensing method
Shaft insulation 3.5 kV
Operating temperature -40 to +100 °C
Protection IP66
Corrosion Protection CX
Cable length permissible up to 350 m for HTL-P Signal
Extended protection circuit
Programming/Parameterization, Status monitoring and display with Baumer Sensor Suite

Optional

Manipulation proof Parameterized (programmed) pulse/ppr setting can be ordered from Baumer factory
ATEX Version

Technical Data

Manufacturer : Baumer Hübner

Catalogue Number : EHOG860-11730684

Shaft Type : Blind Hollow Shaft

Shaft (S)/Bore (B) Dia. : B: 12 mm

Mounting Type : Support Plate

Encoder Type : Programmable Incremental

Output Signal : HTL-P (Power Linedriver) / TTL (Prog.)

PPR : 1 to 32768 (Prog.) ppr

Supply Voltage : 4.75 to 30 VDC

Connection Type : Terminal Box with 1xM20 Cable Gland

Operating Temperature : From -40 °C to +100 °C

Protection : IP 66

Approval : CE, UL Approval / E217823

Special Notes

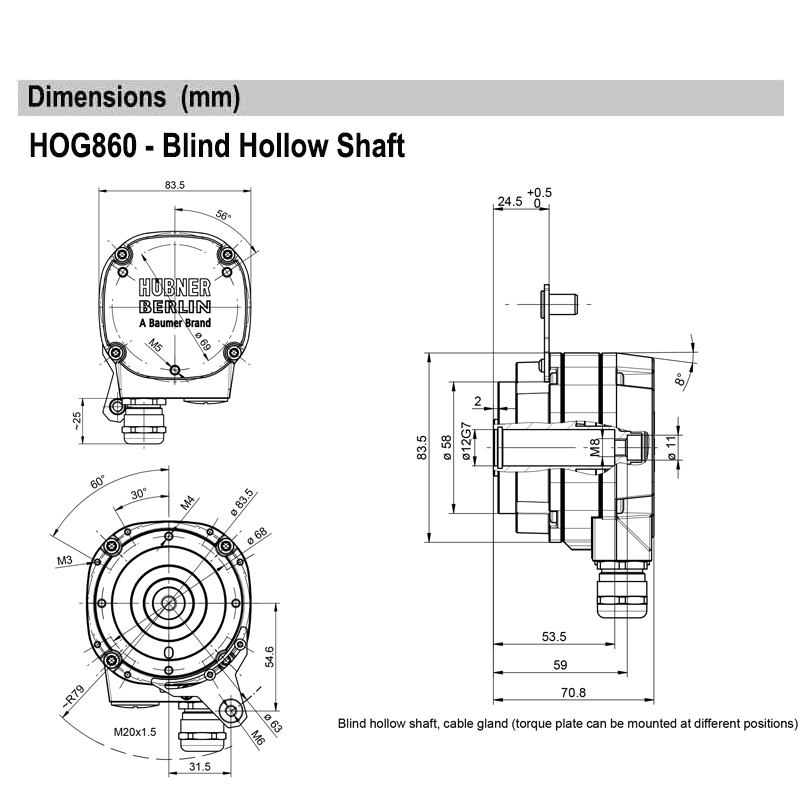

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
