MHAP100B5G38SG12NU4096D

Manufacturer : Baumer Hübner
Country of Origin : Germany
Description :
Through Hollow Shaft Bearingless Magnetic SingleTurn HDMag HeavyDuty Absolute Encoder; Sensor Head with integrated FPGA Signal processing; Bore Dia. 38mm (38H7), Screw or Shrink Fit mounting; Supply Voltage: 5 to 30 Vdc; SSI Gray Code; Absolute Resolution: 12-Bit SingleTurn; Parity Bit: None; Incremental Output: 5vdc/TTL; 10-30Vdc/HTL Universal; 4096 PPR; Connection: Flange Connector - Radial, M23 17-Pin; Head: IP 67, Wheel: IP 68
PDF-Icon Datasheet 1
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity : 1
Minimum Order Quantity : 1
Order In Multiples of Quantity : 1
Required Quantity :
- +
Price on Request

Product Salient Features:

  • Absolute Encoder with Magnetic Sensing and without bearings
  • Sensor head with integrated FPGA signal processing
  • Robust and wearless
  • Fully encapsulated Electronics
  • High Protection: Head: IP 67, Wheel: IP 68
  • Large tolerances: axial ±1 mm, radial max. 0.5 mm
  • Simple mounting, easy adaptation
  • Several mounting possibilities

Optional

  • Several mounting possibilities
  • Interface: SSI - Binary Code; Parity Bit: Odd/Even
  • Absolute Resolution: 8/9/10/11/13/14/15/16/17-Bit SingleTurn
  • Output Signals: SinCos; Square-wave TTL
  • PPR: 1/2/4/8/16/32/64/128/256/512/1024/2048/4096/8192/16384/32768/65536/131072
Technical Data
Manufacturer : Baumer Hübner
Series : MHAP100
Interface : SSI
Sensing Method : Magnetic
Encoder Type : Absolute ST
Absolute Resolution : 12-Bit ST
Incremental Output : With
Supply Voltage : 5 to 30 Vdc
Mounting Type : Screw or Shrink Fit
Shaft Type : Through Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 38 mm
Connection Type : M23 17-Pin Radial Flange Connector
Operating Temperature : From -20 °C to +85 °C
Protection : IP 67/68
Approval : CE, UL Approval / E217823
Special Notes

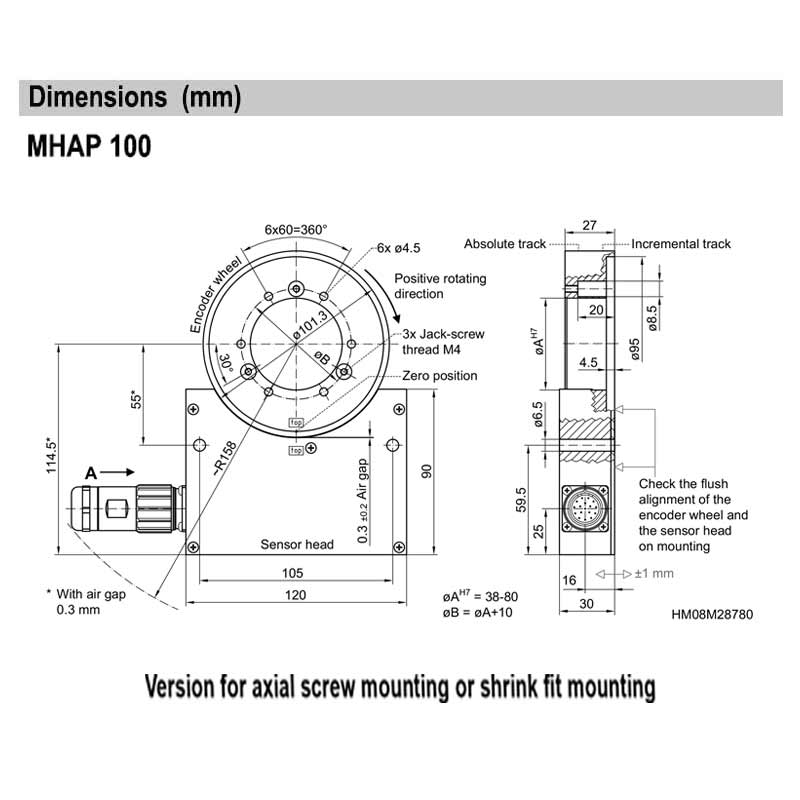

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
