EIL580-BT12.5LN.01024.A
SKU
EIL580-BT12.5LN.01024.A
Manufacturer :
Baumer Thalheim
Country of Origin :
Germany
Description :

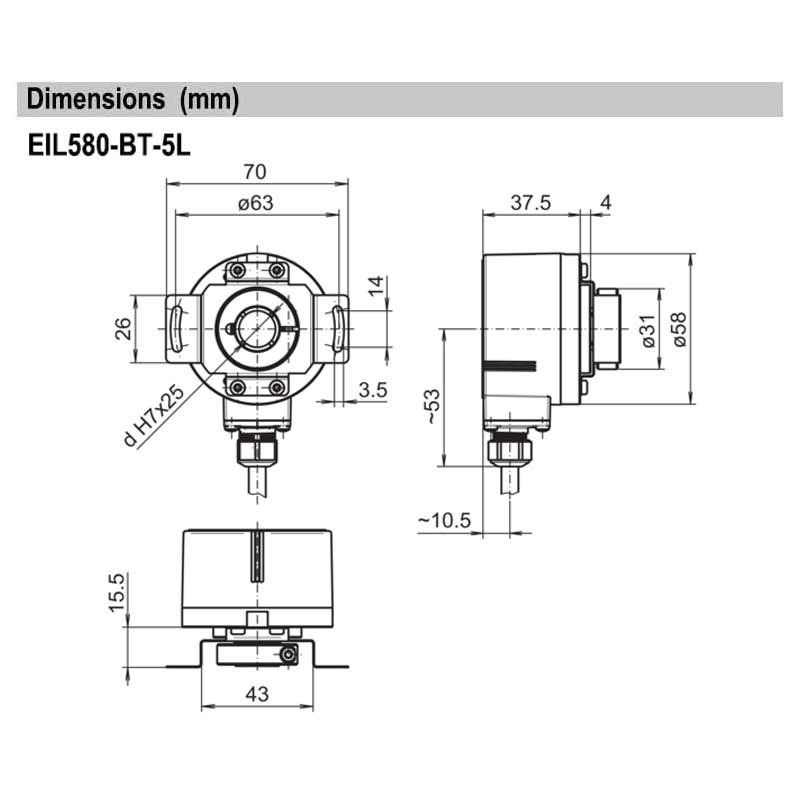

Blind Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø12 mm, Clamping Ring on A-side; Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
- Body Size Dia. 58mm; Bore Dia. 12mm, Clamping Ring on Side A
- Precise optical sensing
- Output Signal Level HTL/Push-Pull
- Blind Hollow Shaft, Stator Coupling Dia. 63mm
- Connection Radial (Standard Version with 2-Mtrs prewired shielded Cable
- Protection IP 65 (Standard Version)
- High resistance to shock and vibrations
