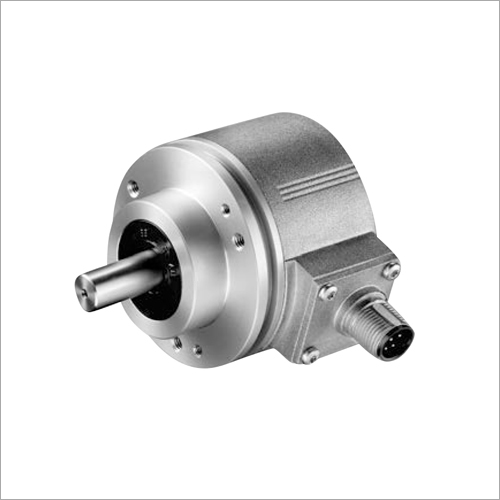

Industrial Silver Incremental Encoders

Industrial Silver Incremental Encoders
Industrial Silver Incremental Encoders
Send Inquiry
Product Code : EIL580-SC
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 5000.00 - 300000.00 INR
Product Specifications
  • Product Type
  • Incremental Encoders
  • Material
  • Aluminium
  • Usage
  • Industrial
  • Voltage
  • 220 to 415 Volt (v)
  • Warranty
  • 1 year
Product Description

Features :

  • Size Ø58 mm
  • Precise optical sensing
  • Output signal level TTL or HTLom
  • Clamping flange
  • Connection axial, radial or tangential
  • Pulses per revolution up to 5000
  • High protection up to IP 67
  • High resistance to shock and vibrations

Technical data - electrical ratings :

Voltage supply

5 VDC +5 %, 8...30 VDC, 4.75...30 VDC

Reverse polarity protection

Yes

Short-circuit proof

Yes (HTL)
Yes (TTL, max. 1 s and 1 signal)

Consumption w/o load

<70 mA

Pulses per revolution

100...5000

Phase shift

90o +10o

Duty cycle

40...60 %

Reference signal

Zero pulse
Width 90o +10 %

Sensing method

Optical

Output frequency

<300 kHz (TTL)
<160 kHz (HTL)

Output signals

A+, B+, R+, A-, B-, R-

Output stages

TTL/RS422
HTL/push-pull

Interference immunity

DIN EN 61000-6-2

Emitted interference

DIN EN 61000-6-3

Approval

UL 508 / CSA 22.2

Technical data - mechanical design

Size (flange)

Ø58 mm

Shaft type

Ø10 x 20 mm, solid shaft with flat
Ø3/8" x 4/5" (Ø9.525 x)
20.32 mm), solid shaft with flat

Admitted shaft load

<40 N axial
<80 N radial

Flange

Clamping flange

Protection DIN EN 60529

IP 65 (without shaft seal),
IP 67 (with shaft seal)

Operating speed

<6000 rpm (+20 oC, IP 67)
<12000 rpm (+20 oC, IP 65)

Starting torque

<0.015 Nm (+20 oC, IP 65)
<0.02 Nm (+20 oC, IP 67)

Materials

Housing: aluminium die-cast
Flange: aluminium
Solid shaft: stainless steel

Operating temperature

-40...+85 oC

Relative humidity

90 % non-condensing

Resistance

DIN EN 60068-2-6
Vibration 30 g, 10-2000 H
DIN EN 60068-2-27
Shock 300 g, 6 ms

Connection

Flange connector M12, 8-pin
Flange connector M23, 12-pin
Cable

Weight approx.

300 g

Trade Information
  • Payment Terms
  • Others, Cheque, Cash in Advance (CID)
  • Supply Ability
  • As per the order Per Month
  • Delivery Time
  • 1 to 2 Days
  • Packaging Details
  • Carton Box
  • Main Domestic Market
  • All India
